Line Array Systems

R1RPTK-FS-LA

Dual 12-inch Three-Way Active Line Array System

Dual-12-inch three-way line array design with distinctive styling, convenient rigging, high-resolution sound and multiple operating modes. Built-in active amplification. Signal connector type and amplifier details remain pending confirmation.

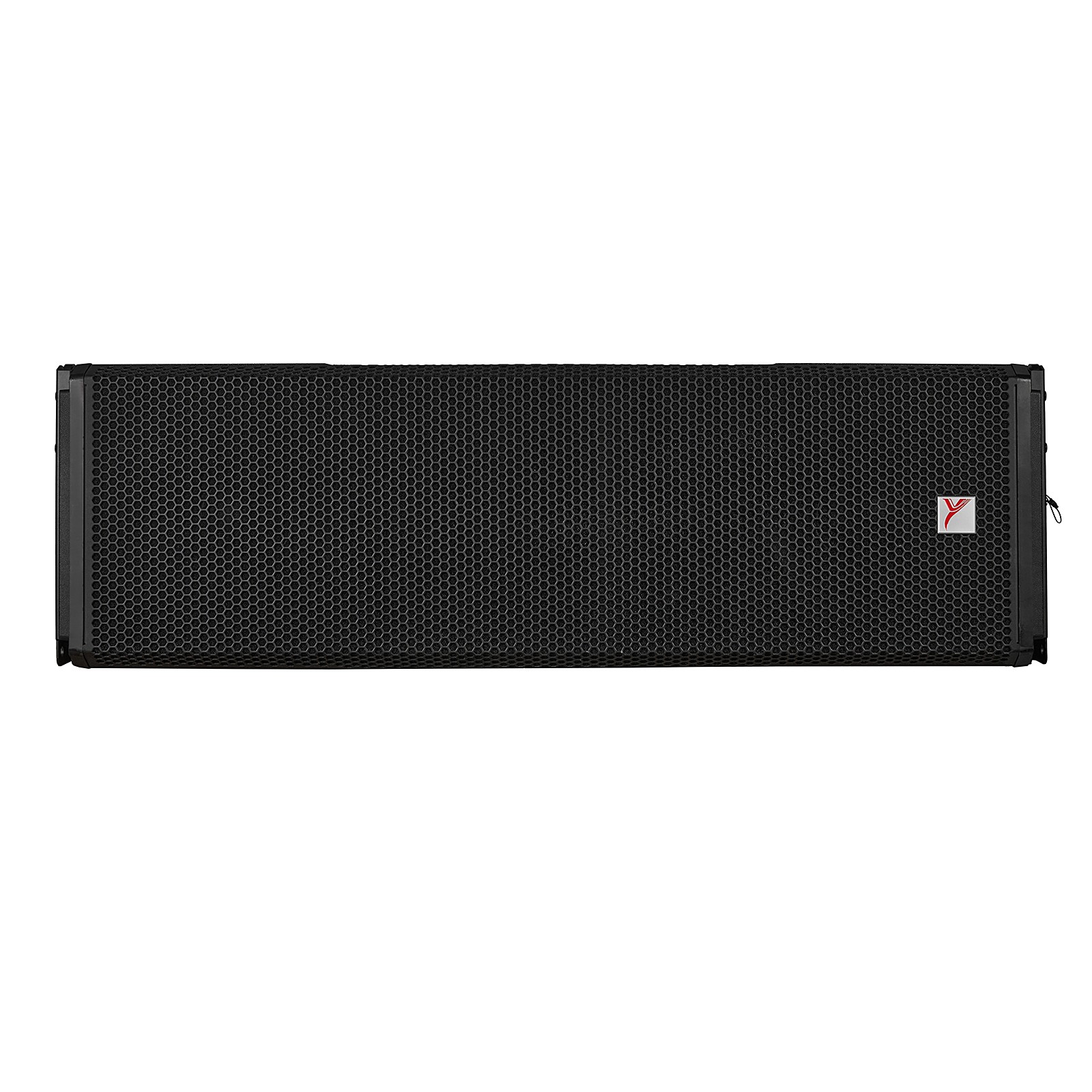

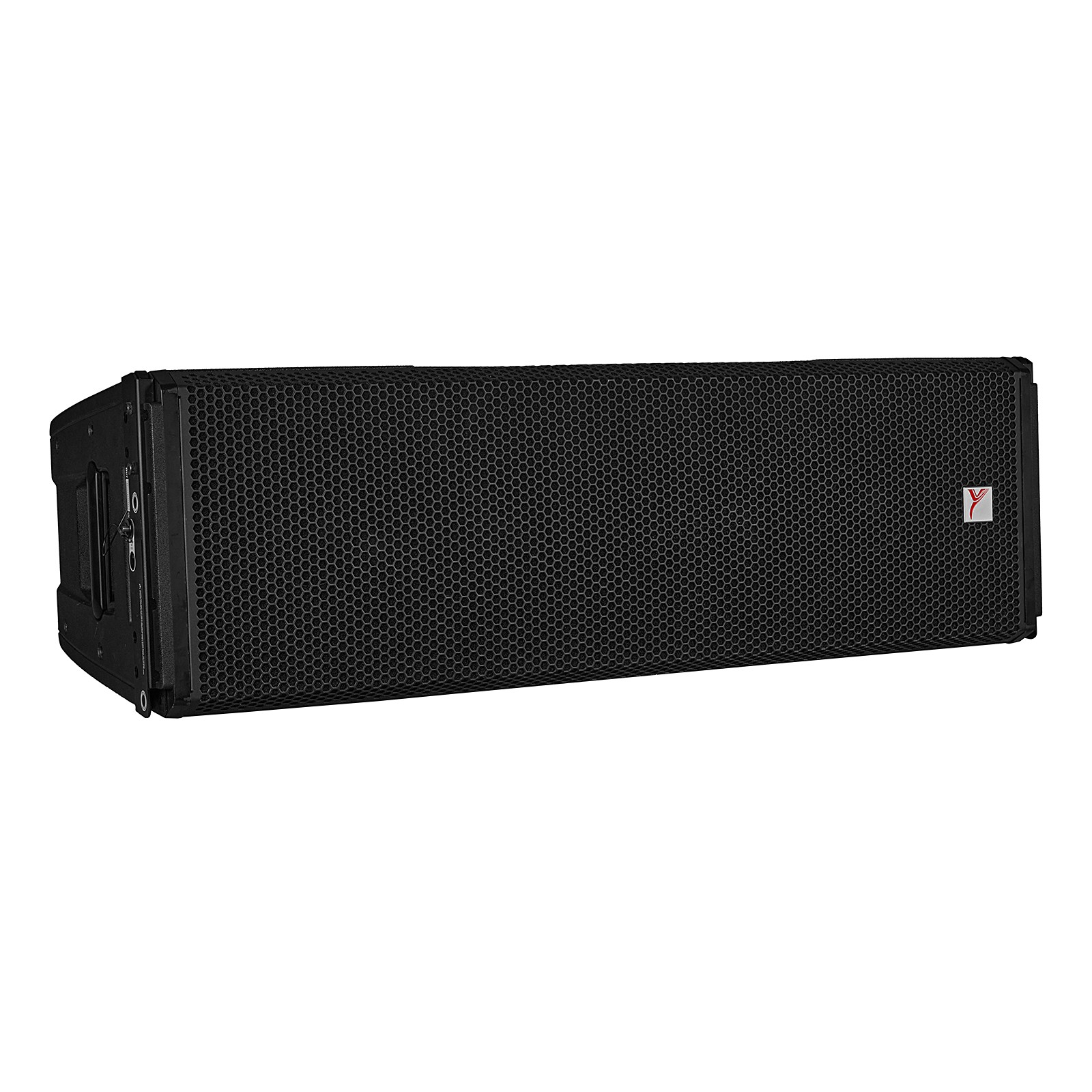

R1RPTK-FS-LA Dual 12-inch Three-Way Active Line Array System
INSIDE THE WORKSHOP

See How We Build It

Follow the manufacturing process in these films from our workshop. English process titles are included.

Product Overview

Dual-12-inch three-way line array design with distinctive styling, convenient rigging, high-resolution sound and multiple operating modes. Built-in active amplification. Signal connector type and amplifier details remain pending confirmation.

Applications

Medium & large live events; banquet halls; bars; sports venues; performing arts centers; conference centers

Key Features

Dual-12-inch three-way line array design with distinctive styling, convenient rigging, high-resolution sound and multiple operating modes. Built-in active amplification. Signal connector type and amplifier details remain pending confirmation.

Frequency Response

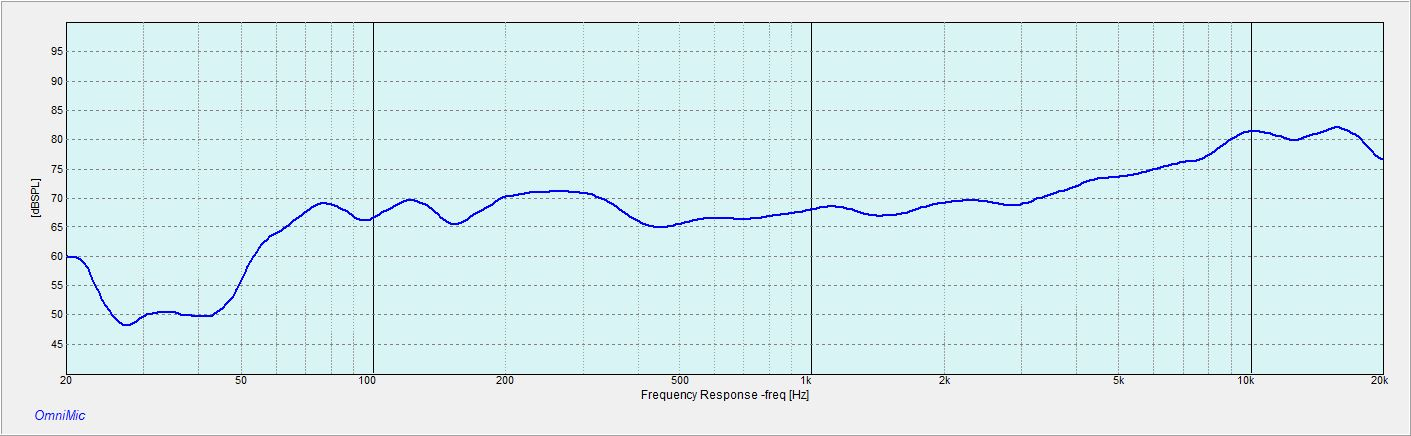

R1RPTK-FS-LA frequency response curve
Original engineering workbook curve

Specifications

Technical specifications for the selected product.

R1RPTK-FS-LA technical specifications
Technical Specifications
Frequency response60Hz-20KHz(±3dB)
Sensitivity (1W, 1m)108dB
Nominal impedance4Ω
AES power1400W
Peak power4200W
Coverage90°Hor*10°Ver
Recommended crossoverHF:1.8KHz-16KHz MF:350Hz-1.8KHz LF:45Hz-350Hz
LF driver12" 75mm 8Ω ×2 (Neo)
MF driver6" 50mm 16Ω×4 (Neo)
HF driver(1.5" Throat diameter)75mm 3" 8Ω×2 (Neo)
Maximum SPL / Peak139dB /145dB
Cabinet material18mm Birch wood
Dimensions (W × H × D)W1163*H360*D520mm
Weight60kg
Signal connectorPending engineering confirmation

Product Documents

Final datasheet and manual pending. Contact the team for currently available product information.
